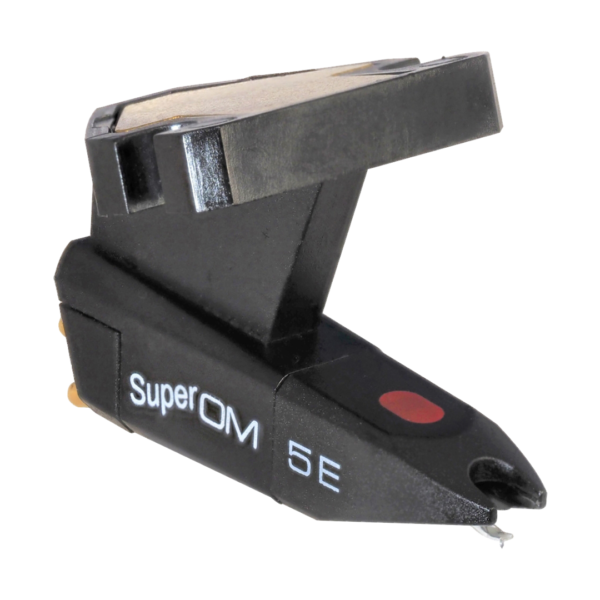

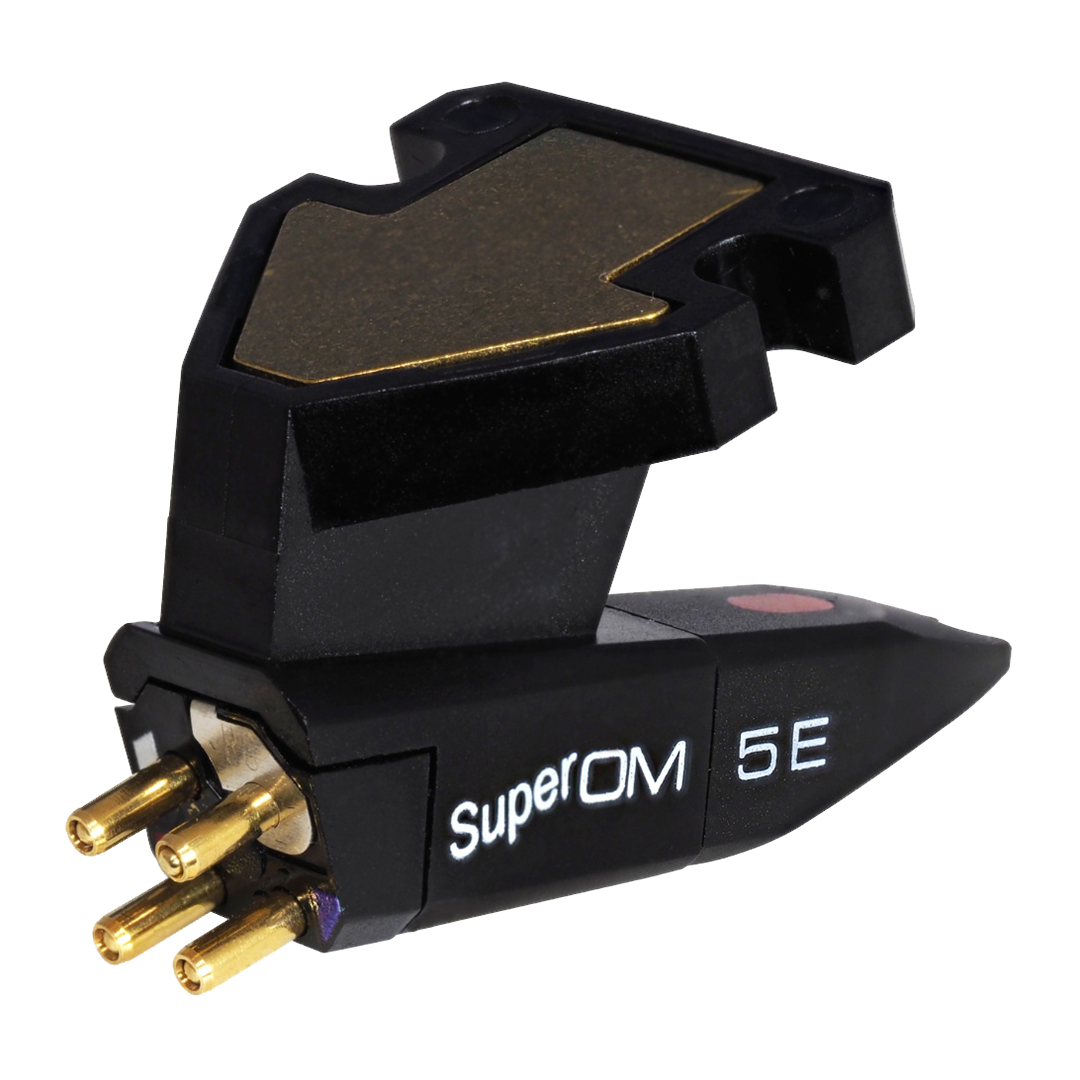

Ortofon Super OM5E Moving Magnet Cartridge
Based on the OM 5E, Ortofon’s stellar entry-level cartridge, the Super OM 5E offers an even more refined experience at an approachable price.
Lightweight and versatile,...
See descriptionBased on the OM 5E, Ortofon’s stellar entry-level cartridge, the Super OM 5E offers an even more refined experience at an approachable price.
Lightweight and versatile, the Super OM 5E is compatible with just about any tonearm, making it an easy upgrade for a vinyl beginner or a terrific option for a second system.
$149.00
AUD Inc. GST
BEST PRICE GUARANTEE
SPEAK TO OUR TEAM • TEXT US
Free Shipping
Australia wide on orders over $100
or 6 payments of $24.83 with zip
Own it now, pay later Learn More
| Technical data | |
| Output voltage at 1000 Hz, 5cm/sec. | 4 mV |
| Channel balance at 1 kHz | 1.5 dB |
| Channel separation at 1 kHz | 22 dB |
| Channel separation at 15 kHz | 15 dB |
| Frequency range at - 3dB | 20-25.000 Hz |
| Frequency response | 20-20.000 Hz ± 2 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 65 µm |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Tracking force range | 1,5-2,0 g (15-20 mN) |
| Tracking force, recommended | 1,75 g (17,5 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 750 Ohm |
| Internal inductance | 450 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 200-600 pF |
| Cartridge colour, body/stylus | Black/Black |
| Cartridge weight | 5 g |
| Replacement stylus unit | Stylus 5 E, Stylus 10 |
