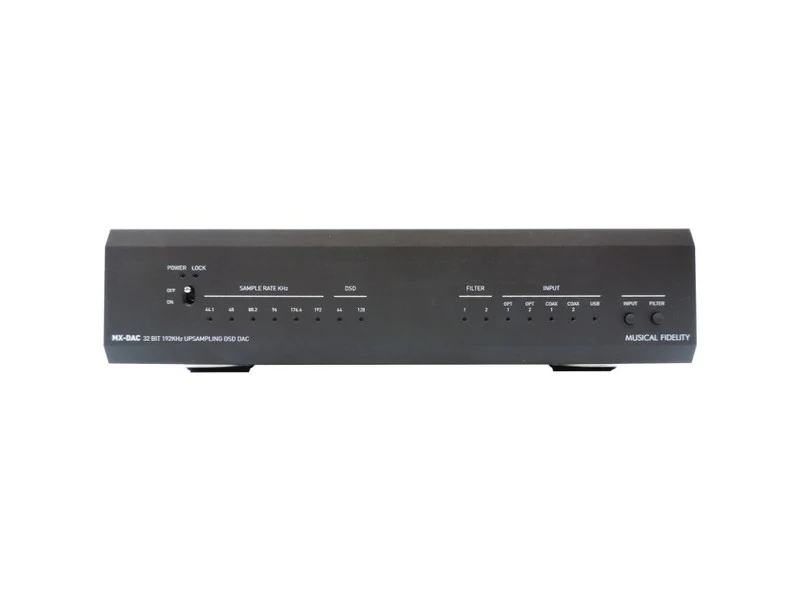

Musical Fidelity MX-DAC Upsampling DSD Digital to Analogue Convertor

For all the Hi-Fi enthusiasts who are looking for exceptional audiophile performance yet a compact design, nothing could be as innovative and functionalas...

See description

For all the Hi-Fi enthusiasts who are looking for exceptional audiophile performance yet a compact design, nothing could be as innovative and functionalas the MX-DAC.

AUD Inc. GST

FREE SHIPPING Australia wide on orders over $100
Clear
In Stock

Musical Fidelity has come up with its first digital-to-analogue converter that supports high-resolution DSD digital playback in the form of MX-DAC. A result of years of research and development, the MX-DAC is designed to offer superlative audio performance. For all the Hi-Fi enthusiasts who are looking for exceptional audiophile performance yet a compact design, nothing could be as innovative and functionalas the MX-DAC.

Flawless Digital Conversion

The MX-DAC offers a cutting-edge digital conversion. It carries out an accurate and neutral digital-to-analogue conversion and offers improved flexibility with balanced as well as single-ended outputs.

Direct Stream Digital Format

DSD digital format is known to offer the best audio experience possible by storing audio at a very high sampling rate in the form of a series of single-bit values. Digital inputs like USB, optical or COAX process data in the DSD domain to deliver high-quality audio.

Versatile Input Options

The MX-DAC offers versatile connectivity. It features two COAXIAL inputs (up to 24 bit 192 kHz), two optical inputs (up to 24 bit 96 kHz) and one USB input (up to 24 bit 192 kHz). In addition to this, the MX-DAC also supports inputs for DSD 64 kHz and 128 kHz.

Original Musical Performance

Unlike simple digital conversion, the MX-DAC infuses warmth and humanity into the sound and, thus, proves to be a gripping proposition for all music lovers. It offers the best possible original musical performance, bringing the users much closer to the intended and genuine musical representation put forth by the creator while recording.

Outstanding Build Quality

A value-for-money product, the MX-DAC presents an excellent combination of exceptional-looking aesthetics and a sturdy build. Exclusive custom made extrusions that are forged using Mil-spec aluminum are used to design the front panel as well as the housing for an ultra-impressive look.

Specifications: DAC Structure Sample rate converter: SRC4392 up-sampling data to 192kHz Digital to Analogue converter: PCM1795 32 bit / 192kHz Multi-bit Sigma-Delta type Performance Output Voltage: 2 Volts RMS single-ended (RCA) Output Voltage: 4 Volts RMS balanced (XLR) PCM THD: <0.002% PCM THD(+ noise): <0.003% DSD THD: <0.003% DSD THD(+ noise): <0.006% PCM Frequency Response: –3dB, 2Hz to 90kHz PCM Frequency Response: –3dB, 2Hz to 40kHz Channel Separation: -110dB Capabilities Coaxial Inputs: S/PDIF up to 24 bit / 192kHz Optical Inputs: S/PDIF up to 24 bit / 192kHz USB Input: USB Audio Class 2 requires USB 2.0 or higher USB Data Transfer: Asynchronous with DSD DOP 64/128 support Inputs 2x RCA coaxial connector SPDIF 2x TOSLINK optical connector 1x USB type 'B' connector Outputs 1x line level RCA (single-ended) 1x XLR Male sockets (balanced) to EIA RS-297-A General Dimensions - WxHxD (mm): 220 x 53 x 215 Weight (unpacked / packed): 1.9Kg / 2.4Kg Power Consumption: <0.25 Watts standby, <1 Watt max.
