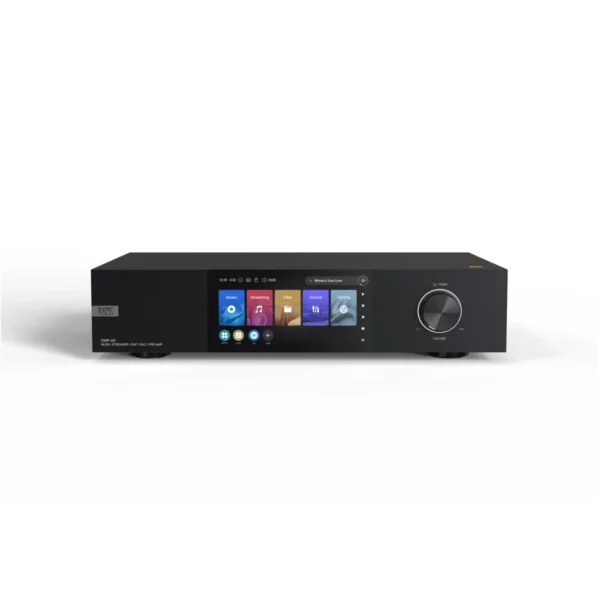

EverSolo DMP-A8 Music Streamer DAC & Pre-Amplifier

The DMP-A8 features the AKM AK4499EX and AK4191EQ Digital-Analog Separation DAC solution. A concept under the name Velvet Sound | Verita, rooted in the idea of “perfect re-creation of the original sound”, it is dedicated to providing the most authentic sound and offering the listener an immersive acoustic experience. The DMP-A8 also features dual ACCUSILICON Femto clocks as found in the DMP-A6 Master Edition, and dual power supplies – a dedicated linear power supply for the analogue circuit and a high-performance low noise digital power supply for the digital board.

Elsewhere, the DMP-A8 gets additional digital inputs in the form of two Toslink optical ins, two coaxial RCA ins, and a dedicated HDMI ARC port. In addition to the digital outputs is a dedicated HDMI IIS port. The DMP-A8 also sports a 3rd generation XMOS 316 audio processor for faster and higher USB bandwidth ensuring lossless transmission of high-definition audio data.

Key Features

• Music Streamer, Digital Audio Player, DAC & Pre-Amplifier
• Dual Accusilicon Femtosecond oscillators with noise reduction
• Dual AKM DACs (Ak4499EX + AK4191EQ)
• Fully balanced analogue preamp circuit
• Fully balanced R-2R analogue volume control
• HDMI ARC + HDMI IIS
• XMOS XU316 3rd generation 16-core processor
• Linear + Digital dual power supplies
• OPA1612 with ultra-low noise and low distortion 1kHz 0.00009%
• Low-jitter dual clock synchronous processing with higher accuracy
• Large 6″ LCD colour touchscreen, with easy control
• Supports DSD512 Native, PCM 768KHz @ 32Bit & MQA full decoding
• Supported master audio formats DSD (.dsf/.dff/.ios/.dst), APE, FLAC, WAV, MQA, etc

• 2-channel and Multi-channel Gapless playback (FLAC, WAV)
• Supports M.2 NVME 3.0 2280 protocol SSD drives (not included), up to 4TB
• 4GB DDR4 + 64GB eMMC memory for loads of applications
• Solid aluminium alloy chassis with brushed front panel.
• Dual-band 2.4GHz + 5GHz WiFi & Ethernet connection
• Qualcomm QCC5125 Bluetooth 5.0 module with APTX HD
• EOS audio engine developed by Eversolo, globally bypassing SRC restrictions
• Supports external USB optical drive for CD disc playback and CD ripping
• Support for Tidal, Qobuz, HiRes audio, Amazon, AirPlay 2, DLNA, etc
• Roon Ready, Spotify Connect, Tidal Connect
• Supports NFS, SMB, Web DAV, and UPnP protocols to access LAN storage devices
• Supports built-in SMB network media sharing service for easy local media sharing
• Exclusive mobile app for Android/iOS smartphones and tablets
• Based on a highly customised version of Android 11
• Includes remote control unit

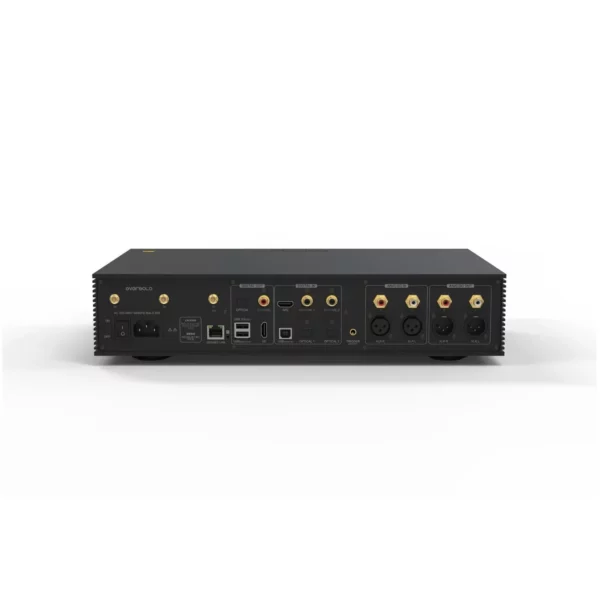

Rich Input and Output Ports

With its diverse talents and connections, the DMP-A8 easily integrates with just about any system. As a streaming source device, of course, it can be thought of as a digital turntable with access to a huge record collection via all its compatible streaming services and library of your own files.

The network streamer can connect with high-end decoding devices via the HDMI, USB, Optical and Coaxial digital output ports. Alternatively, as a decoder itself, the DMP-A8 connects with audio source equipment like PCs and mobile devices via the Coaxial, Optical, USB Type-B input ports, and wirelessly with APTX HD Bluetooth. As a high-performance preamplifier, it supports analog XLR/RCA inputs. Through the balanced XLR and single-ended RCA analog outputs, you can connect directly to active speakers or to a hi-fi stereo amplifier in your two-channel or multi-channel system.

HDMI-IIS Output

DMP-A8 outfits IIS output, which can connect to DACs with IIS input. The mute levels of different DACs’ IIS signals vary. MUTE PIN can be switched by settings. Supporting PCM 768kHz. DSD512 with the highest sampling rate.

HDMI ARC

The DMP-A8, equipped with HDMI ARC (Audio Return Channel) input, can be connected to display devices such as TVs and projectors that have HDMI ARC capability. This allows the separation and transfer of audio signals from the HDMI signal to the DMP-A8, providing the TV with a higher quality sound.

Internal High-Speed M.2 SSD Slot

Expandable with additional storage, the DMP-A8 features an M.2 NVME SSD slot built into the underside of the chassis, allowing you to integrate a solid-state drive up to 4TB without needing to open up the streamer case. Faster, stable and with no noise, SSDs are ideal for local high-quality music playback. Additionally, storage devices can be connected externally through the USB OTG port of the DMP-A8. SSD sold separately.

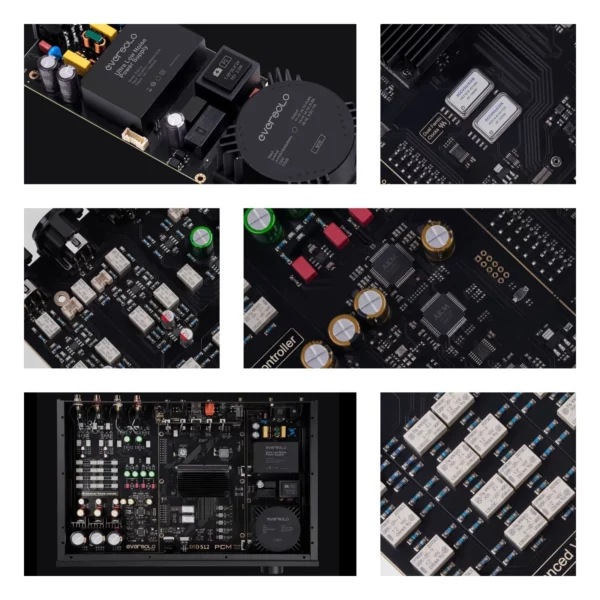

Dual Power Supply Design

In order to eliminate interference and noise between the system circuit and the audio circuit, and to enhance sound purity, separate designs are employed for the power supply of the system and the audio circuit. The linear power supply is composed of a multi-winding toroidal transformer, specifically designed to match the characteristics of analog audio circuits. The high-quality switching power supply is tailored to the system circuit. It significantly reduces ripple and magnetic leakage interference, providing a strong foundation for high-quality audio processing. Furthermore, it incorporates a patented smart switching technology for the linear power supply voltage input, enabling compatibility with voltages worldwide without flipping switches.

Handpicked Audio Components

The sound quality of the DMP-A8 analog output is monitor-level. The primary elements of the audio circuit are of very high quality, including WIMA capacitors from Germany, NICHCON dedicated audio capacitors, Murata chip capacitors and Omron relays from Japan, TI Audio Operational Amplifiers from the USA, etc. The goal is to provide a more authentic and pure sound performance with parts that have been proven reliable.

Professional Tuning and Reliable Audio Indicators

The DMP-A8 has been expertly tuned, and the circuit has been thoughtfully constructed, thanks to the wealth of knowledge from engineers at Eversolo who come from a background in development in the hi-fi industry. THD+N is -120 dB (0.00009%), SNR is 128 dB, and dynamic range is 128 dB. The leading indicators provide a strong base for high sound quality.

Music Library for Local Playback

Eversolo Music Library not only provides excellent local music playback performance but also an improved music management experience for you. Add music files from a local hard drive or network storage and automatically retrieve music metadata from the cloud to build a custom music library by matching artists, albums, local CUE files and so on; songs are displayed in categories based on genres, albums, artists and sample rates; making it incredibly easy to organise your favourite songs and search by album, artist, or song initials.

Music Services at Your Fingertips

The DMP-A8 incorporates popular music services like TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music etc. You can take advantage of numerous high-quality online music services and revel in the allure of limitless streaming music. Support for numerous third-party apps (such as Apple Music), high-resolution audio Direct output using the original EOS engine.

Wireless Music Streaming

Roon Ready, Spotify Connect, Tidal Connect, DLNA, and AirPlay are supported by the DMP-A8. High-quality music can be streamed online to mobile devices on the same local network, making it simpler to enjoy online music services and easier to play back music at home.

Effective Media Management System

The DMP-A8 offers a robust media management system that enables editing operations for local hard drives and network storage like copying, copying, pasting, cutting, and deleting. The USB port can be configured as USB OTG, making it easy to connect the PC to DMP-A8 for local file management. Internal SMB sharing function allows sharing of media files from a connected mobile device or internal SSD (if installed) to other media playback devices, computers or mobile devices in the same network. This makes it possible for the DMP-A6 to be used as a network storage device to share audio sources at any time.

Multiple Network Protocols

DMP-A8 not only has two high-speed USB 3.0 ports, an SSD slot for local storage expansion, but also supports NFS, SMB v1/v2/v3, and UPnP sharing protocols, allowing users to browse and play multimedia content saved on NAS or network drives connected in the same LAN with gigabit network. Even high data rate DSD512 master files can be played without stuttering.

Smart Control App

Android/iPhone/iPad control apps are developed for the DMP-A8. In addition to basic playback control and system settings, they also support asynchronous viewing of music library data and menus, which is convenient for music playback and data searching. Screen mirroring is also supported by installing third-party apps.

roon READY

Roon is an incredibly rich and engaging way to browse and organise your music. It runs on most Mac, Windows, and Linux PCs, or on other products which include Roon Core. Being Roon Ready means that Eversolo network players transparently discover and connect to Roon without any configuration, and bit-perfect audio is delivered from Roon to your network player. Together, Roon and Eversolo deliver the power, flexibility, and performance of networked audio, with the easiest setup and highest reliability available.

Unique Aluminium Chassis

The DMP-A8 is made from aviation aluminium and features a CNC-machined body for solid construction. The brushed panel and frosted anodised body are a great combination of classic and modern elements. This design philosophy results in a device that makes an impression when seen on a rack with your other hi-fi equipment.

Personalised VU Meters

For audiophiles and hi-fi enthusiasts, the DMP-A8 provides a wide range of personalised dynamic VU meters for the 6″ LCD colour screen on the front panel. This wonderfully interactive experience is offered with real-time full-format music display, including DSD.
