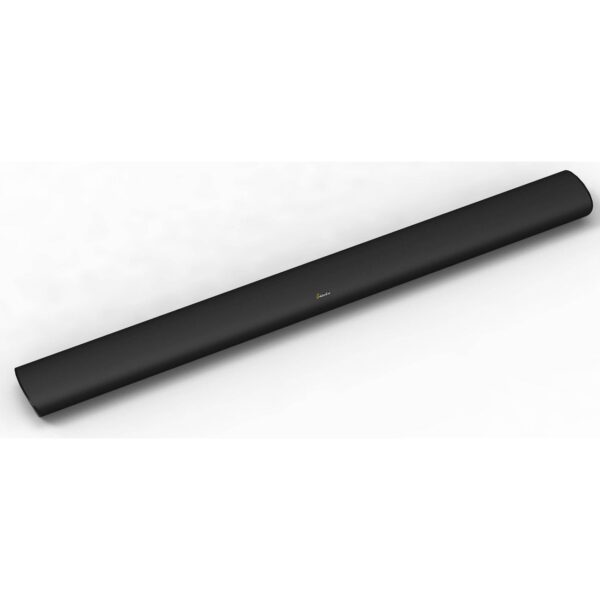

GoldenEar 3D Array X 3 Channel Passive Soundbar (Ex Display)

Ex Display, Full Warranty

The SuperCinema 3D Array X soundbar is a remarkable loudspeaker systems that combines the elegant form factor of a soundbar with the extraordinary sonic performance of a true discrete-speaker surround system. The aesthetically compelling visual appeal of a soundbar is undeniable. Unfortunately, both passive and active soundbars fail to achieve a truly convincing surround-sound experience when compared to a high-quality, fully discrete multi-channel surround system. GoldenEar Technology has developed a unique technology for this soundbar series that incorporates special 3D image optimization technology to achieve superbly lifelike, wide, deep 3D playback realism with virtually no acoustic coloration.

This technology, effectively addresses certain problems that have been brought up recently in a 3D audio research project being conducted by Dr. Edgar Choueiri at Princeton University. Dr. Choueiri points out that the crosstalk that exists between the left and right loudspeakers and our contralateral ears, especially when the left and right channels are minimally separated (as we normally encounter in soundbar systems), is deleterious to our brain’s ability to fully experience and process the imaging cues so necessary for 3D imaging perception. These imaging cues are present in the recordings but dramatically corrupted in typical soundbar playback where the left and right channel speakers are simply too close together.

The 3D Array Soundbar incorporates left, centre and right-channel speakers to effectively cancel out this crosstalk distortion between the left and right channels. The result is a front soundstage that stretches from wall to wall and beyond, with amazing height, width and depth that effectively envelops the listeners in a true 180-degree soundfield, much wider than the actual physical soundbar! All this is contained within sleek, attractive 72 mm thin enclosures that perfectly complements the latest super-thin flat panel TVs.

The 3D Array soundbars are designed for use with a powered subwoofer – the GoldenEar ForceField Subwoofers are engineered to be the perfect high-performance match.

Surround Speakers Optional: The unique 3D Array soundbar technology delivers extraordinary surround sound performance with or without rear surround speakers. Excellent and convincing surround sound performance is achieved even without surround speakers, however, when the 3D Arrays are combined with a pair of rear surrounds (like the SuperSat 3s) the result is a mind-boggling true surround-sound experience that rivals discrete six-speaker (or more) systems. In fact, it actually surpasses all but the very best in the ability to dramatically recreate the realism of a live performance or a cinematic event.

The 3D Array X soundbar incorporates six of GoldenEar Technology’s spider-leg cast basket 4.5″ (114 mm) bass-midrange drivers with their unique Multi-Vaned Phase Plugs. In addition, there are three of GoldenEar’s extraordinary High-Velocity Folded Ribbon tweeters utilizing the patent pending Mag-X Coupling Crossover Technology which delivers improved 3D imaging as well as smoother response and greater detail. The 3D Array X is an ideal match for 48″- 60″ TVs. The beautiful piano-gloss-black-finished cabinets are aerospace-grade extruded aluminium with marble-powder-infused baffle and end-caps. They can be easily wall-mounted using their keyhole mounts or threaded brass inserts, or shelf-mounted using their adjustable rear supports.

About GoldenEar

In the summer of 2010, Sandy Gross, co-founder of two of the most successful speaker brands in the history of the audio industry (Polk Audio & Definitive Technology), announced the launch of a new loudspeaker company, GoldenEar Technology.  Why?  “Speaker design is what we’ve done all our lives” says Sandy; “We love it and are really good at it. In almost every case, the creative entrepreneurial founders of the industry’s major loudspeaker companies have left, and their companies are now owned by private equity firms or are part of large conglomerates. We wanted to bring back the combination of entrepreneurial spirit and passion for incredible sound which has always driven this business and helped to create the great speaker companies of the past.”

The GoldenEar Technology line embodies revolutionary engineering breakthroughs, while adhering to the standards of superb sonic performance, elegant styling and exceptional value that Sandy and his design partners have always used as their personal design benchmarks. GoldenEar’s recipe for success is simple: the best products offered only by the best specialty dealers and custom installers – those who share GoldenEar’s enthusiasm for great sound and great value.

Main Features & Specifications

• Design: High Performance Passive LCR Soundbar
• Three High-Velocity Folded Ribbon Tweeters (HVFR)
  • Tweeter Diaphragm is a High Temperature Film
  • High-Power Neodymium Magnets
  • Squeezes/Pressurizes Air Instead of Pushing It
  • Greater Control, Smoother More Extended Response
  • Vanishingly Low Distortion
  • Dramatically Improved Dynamic Range & Detail
  • Superb Dispersion Characteristics
  • Superior Impedance Match to Air
• Six 4.5” (114mm) High-Definition Cast-Basket MVPP™ Mid/Bass Drivers
  • GoldenEar Multi-Vaned Phase Plug (MVPP) Design
  • Rigid Free-Flow Cast-Basket Chassis
  • Proprietary Computer Optimized Cone Topology
  • High-Gauss Magnet Assembly
  • 1″ High-Temperature Kapton Former Voice Coil
  • Extremely Extended Resonant Free Liner Frequency Response Characteristics
• Frequency Response: 80 Hz – 25 kHz
• Efficiency: 89 dB
• Impedance: Nominal 4Ω (Compatible with 8Ω)
• Recommended Amplification: 20 – 200 Watts
• Finish: Gloss Black
• Dimensions (WxHxD): 1,245 x 121 x 72mm
• Weight: 7.8 kg
• Manufacturer’s Warranty: 5 Years
