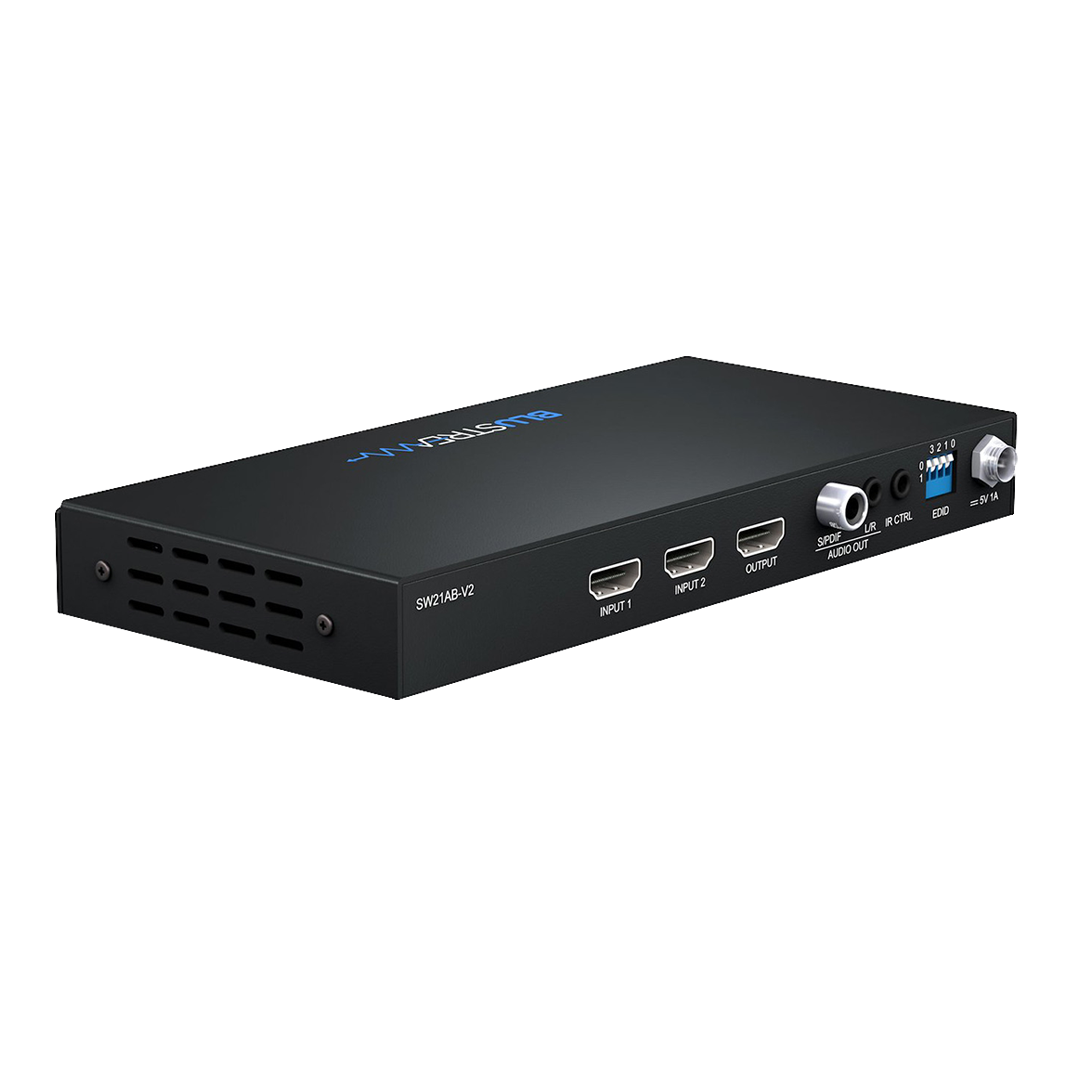

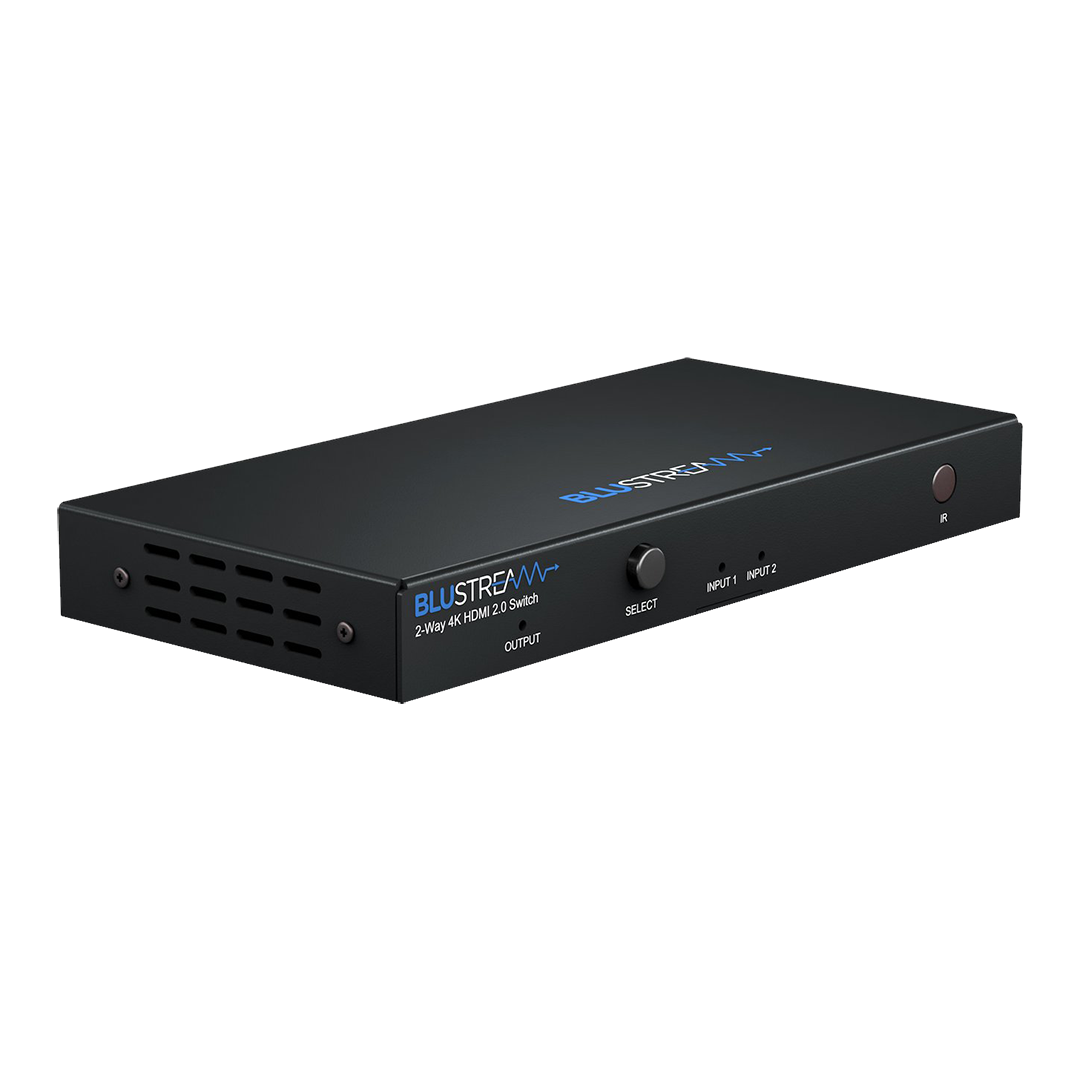

Our SW21AB-V2 is a 2-Way HDMI switch with integrated audio breakout. The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.
Features 2 x HDMI inputs which can be switched to a single HDMI output*
Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
HDCP 2.2 compliant
Supports 3D signal display
Supports CEC bypass (Consumer Electronics Control)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
Control via front panel and IR (remote control included)
Advanced EDID management
*Please Note: this unit is not auto signal sensing / switching
